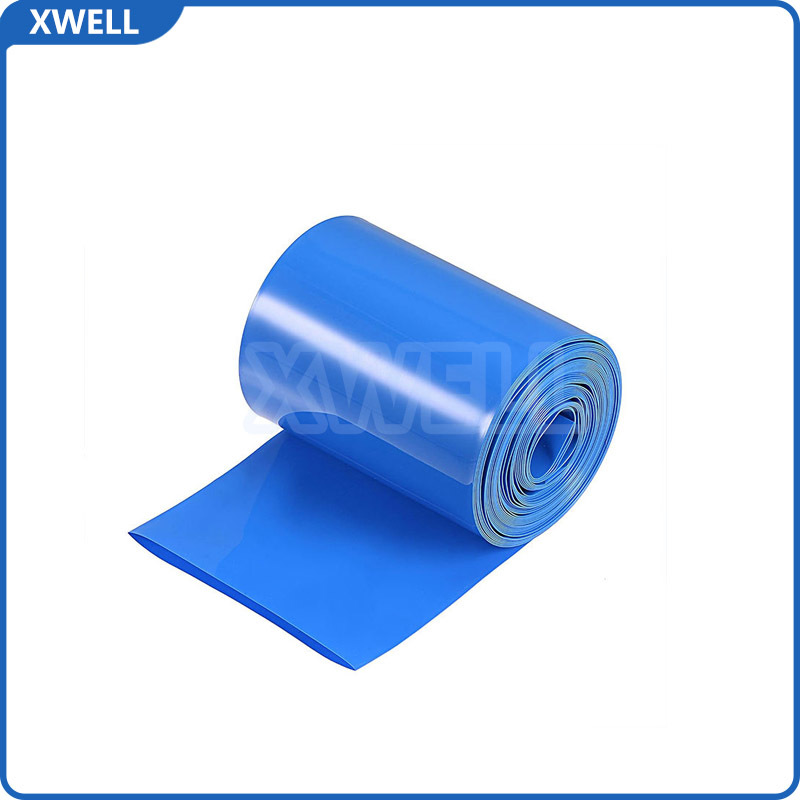

Blue PVC Heat Shrink Tube 18650 Battery Pack Protection Plastic Film 7-500mm Insulation Flame Retardant Heat Shrink Sleeve

Name: Blue PVC Heat Shrink Tube 18650 Battery Pack Protection Plastic Film 7500mm Insulation Flame Retardant Heat Shrink Sleeve
Brand: XWELL
Price: 1 USD

Buy cheap Blue PVC Heat Shrink Tube 18650 Battery Pack Protection Plastic Film 7-500mm Insulation Flame Retardant Heat Shrink Sleeve product

Brand Name : XWELL

Model Number : 18650

Certification : CE

Place of Origin : China

MOQ : 100pcs

Price : 1-1000USD/Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 5-8 working days

Packaging Details : Carton

Shrinkage Ratio : 2:1 (will maximum shrink to 1 / 2 of its supplied diameter )

Minimum Shrinkage Temp : +70°C

Full Shrinkage Temp : +120°C

Operating Temperature : -55°C to + 125°C

Tensile strength : 10.4Mpa

Dielectric strength : 15 kV / mm

Flammability : Flame Retardant , no halogen

Supplied format : round or flat

Cutting method : Scissors or sharp knife

Contact Now

Blue PVC Heat Shrink Tube 18650 Battery Pack Protection Plastic Film 7-500mm Insulation Flame Retardant Heat Shrink Sleeve

Product Overview

Our PVC Heat Shrink Tube with excellent flame retardant, environmental protection, insulation, soft, stable performance, low shrinkage temperature, rapid contraction. Mainly used for battery packing. Battery Heat Shrink can customized to Grey Purple tube ,Green Orange Yellow Personalized Color, Shrinkable Film PVC Heat Shrink Tube usually used for 18650 21700 .

Key Features

The thermostat has seven colors, easy to classify while working.
At a temperature of 120 ℃, it takes only a few seconds to shrink and complete long- term operating requirements of electric equipment.
The conventional size of the heat shrinkable tube has a wide range of open caps. It can also be customized according to your requirements.
The deflector of the heat-shrinkable pipe is smooth and complete with no obvious scratches, unevenness, bamboo-like defects, smooth, oil-free and dust-free.
It has excellent shrinkage performance with shrinkage ratio of 2: 1. High temperature shrinkage, cooling type.

Technical Specifications

Parameter	Specification
Material	PVC (Polyvinyl Chloride)
Pre-Shrink Size	72mm (L) × 30mm (W)
Shrunk Diameter	18.5mm (±0.2mm)
Shrink Ratio	2:1 (50% shrinkage)
Temperature Range	-40°C to +105°C (operational)
Color Options	Transparent, Black, Blue, Red, Gold, Green, etc.

Applications

Battery Insulation: Prevents short circuits in 18650 battery packs.
Color Coding: Simplifies cell identification in DIY projects or industrial packs.
Mechanical Protection: Shields batteries from scratches and impacts.

Why Choose Us?

Safety Compliant: Meets UL and IEC standards for electrical insulation.
Customizable: Special colors or sizes available for OEM projects.
Cost-Effective: Bulk pricing for large orders.
